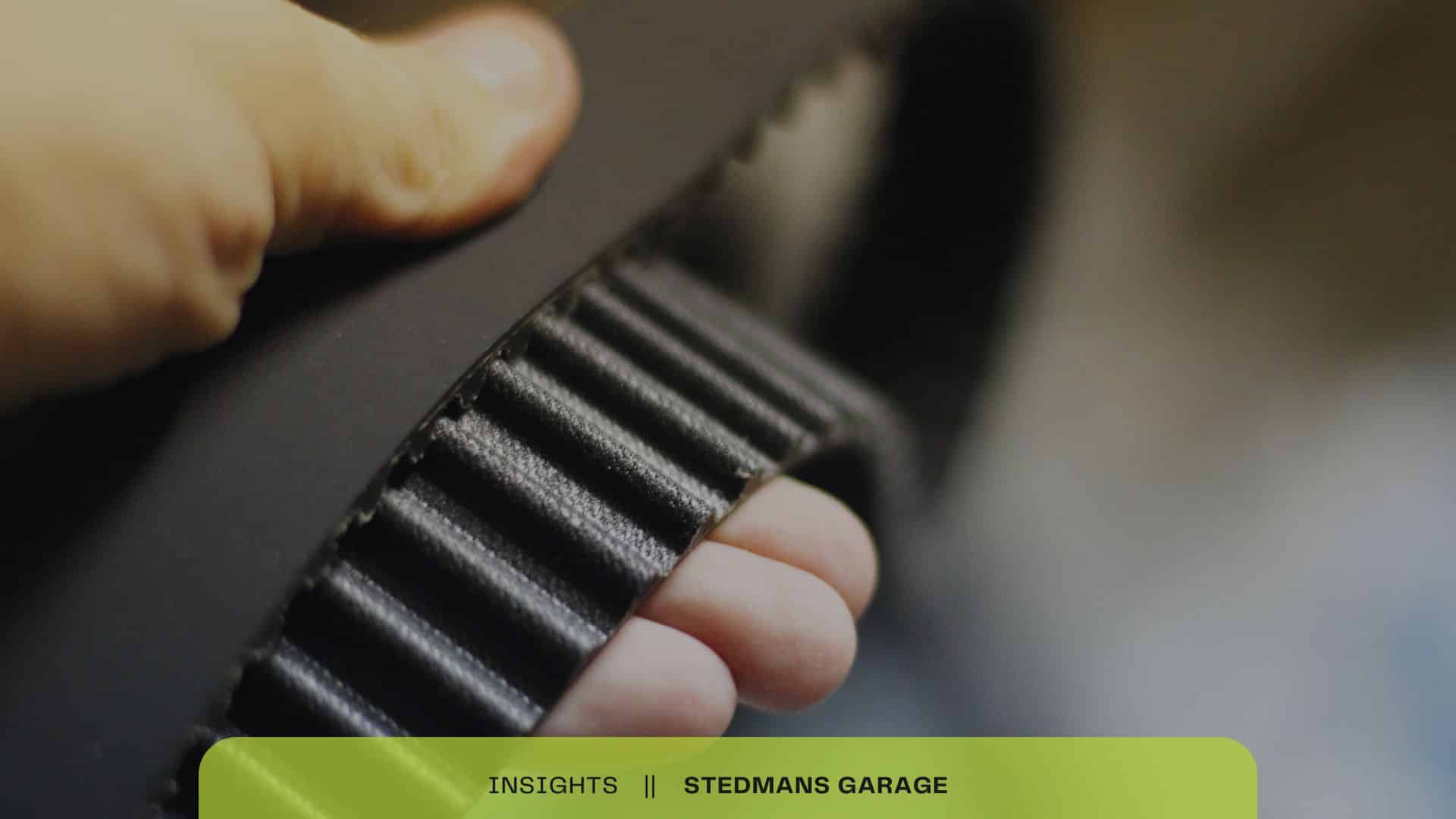

What is a Timing Belt?
Definition and Basic Function of the Timing Belt in an Engine
A timing belt is an essential component in an internal combustion engine, responsible for synchronising the movements of the crankshaft and camshaft. The primary function of the timing belt is to ensure that the engine’s valves open and close at the correct times during each cylinder’s intake and exhaust strokes. This synchronisation is crucial for the engine to operate efficiently and avoid internal damage. Without a properly functioning timing belt, the engine cannot run effectively, leading to serious performance issues and potential damage.
Location of the Timing Belt in Relation to Other Engine Components
Typically, the timing belt is located in the front of the engine and is often protected by a cover to prevent contamination from dust and debris. This cover safeguards the belt from external elements that could accelerate wear and tear. The timing belt connects the crankshaft at the bottom of the engine to one or more camshafts located at the head. These camshafts control the opening and closing of the engine’s valves. Other components linked to the timing belt include the water pump, idler pulleys, and tensioning pulleys, all of which contribute to the belt’s smooth operation and optimal tension.
Comparison between Timing Belts (Rubber) and Timing Chains (Metal)
Engines can utilise either timing belts or timing chains to synchronise crankshaft and camshaft movements, each with its own advantages and disadvantages.

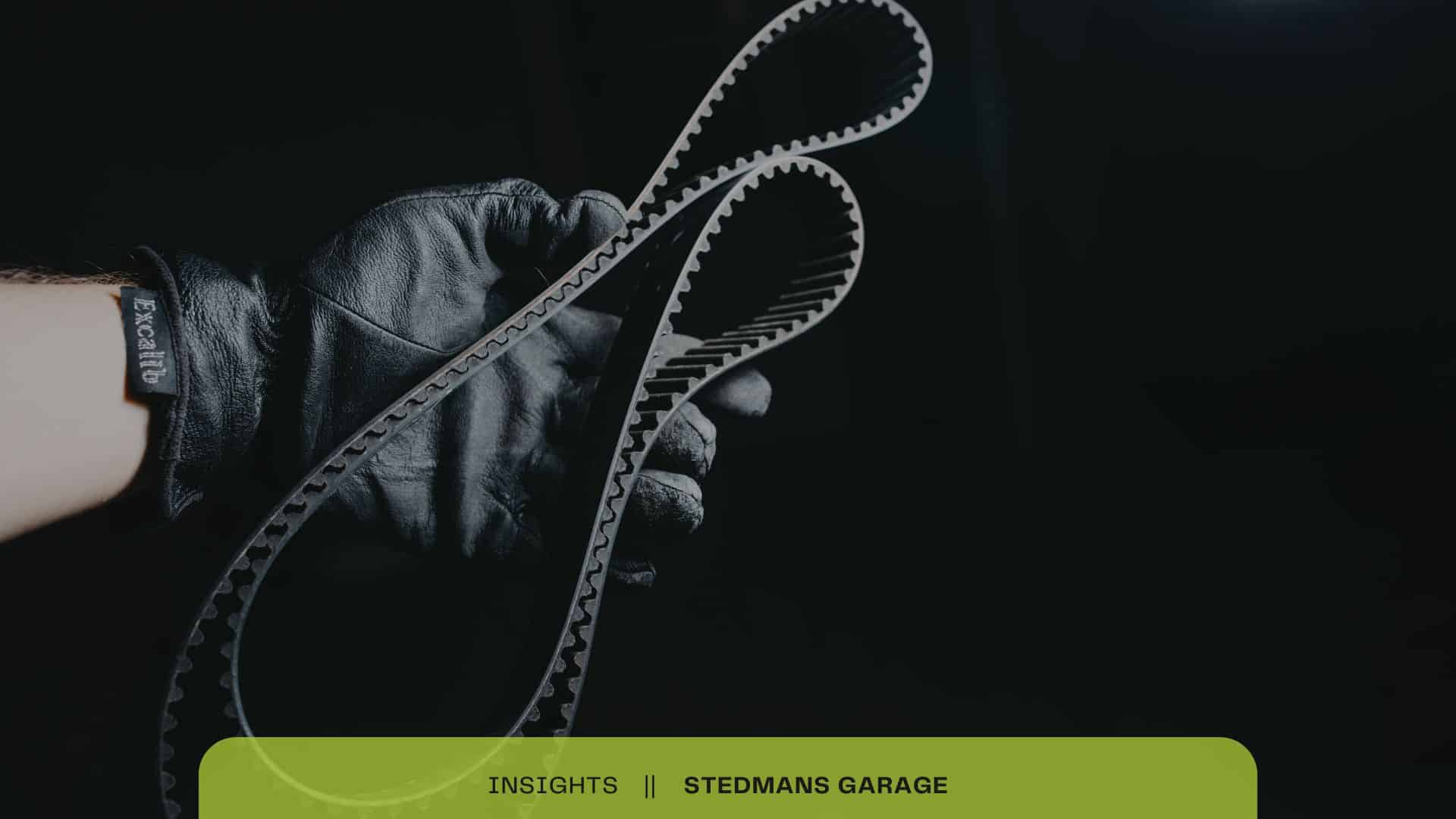

Timing Belts:
- Material: Made of high-quality rubber with embedded fibreglass or Kevlar cords for strength.
- Advantages: Generally quieter and more affordable to produce and replace. Timing belts are lightweight and help reduce vibrations, contributing to smoother engine operation.
- Disadvantages: Have a shorter lifespan compared to timing chains and need replacement roughly every 60,000 to 100,000 miles to prevent catastrophic engine damage.
Timing Chains:
- Material: Constructed from metal, making them more robust and durable than timing belts.
- Advantages: Typically have a longer lifespan and seldom need replacing within the engine’s operating life. Timing chains are less susceptible to wear, making them ideal for high-performance applications.
- Disadvantages: Heavier and noisier than timing belts. They also require regular lubrication, and any issues with timing chains, such as stretching or worn tensioners, can be complex and costly to repair.
The selection between a timing belt or chain often depends on the manufacturer’s design preferences and the intended use of the vehicle. Both components are crucial for maintaining accurate valve timing and ensuring engine efficiency.
How Does a Timing Belt Work?
Synchronisation of Crankshaft and Camshaft Movements
The primary role of the timing belt is to ensure the synchronisation between the crankshaft and the camshaft movements. This synchronisation is vital because it allows the intake and exhaust valves to open and close at precisely the right moments relative to the movement of the pistons. The toothed design of the timing belt ensures it meshes perfectly with the pulleys attached to the camshaft and crankshaft. This meshing facilitates the precise rotation needed to maintain the carefully calibrated timing of valve and piston movements.
Role in Controlling Valve Timing and Piston Movement
The timing belt has a critical role in controlling the valve timing and the piston movement within the engine. As the crankshaft rotates, it moves the pistons up and down within the cylinders. Simultaneously, the timing belt links this rotational movement to the camshaft, which controls the opening and closing of the engine’s valves. Proper synchronisation ensures that the valves allow for the optimum intake of the air-fuel mixture and the exhaust of combustion gases, precisely aligned with the piston movements for efficient combustion. This precision is essential for maintaining the engine’s performance and preventing mechanical damage.
Importance of Precise Engine Component Coordination
Consistent and precise coordination of the engine components facilitated by the timing belt is crucial for the smooth operation of an engine. Even a slight deviation in this timing can result in poor engine performance, inefficient fuel use, and increased emissions. In some cases, improper timing can cause engine components to collide, leading to significant damage. For instance, in interference engines, if the timing belt fails, the pistons could collide with open valves, potentially bending valves or cracking the cylinder heads, leading to severe engine damage.
Proper functioning of the timing belt ensures that each part of the engine operates in perfect harmony, promoting optimal performance and longevity of the engine. Regular maintenance and timely replacement of the timing belt are critical to preventing misalignment and potential mechanical failure.
This precise coordination underscores the importance of all engine components working in unison, enhancing efficiency and preventing damage, which ultimately supports the overall health and function of the engine.
Signs of a Failing Timing Belt
Common Warning Signs
The timing belt is a vital engine component, and recognising early warning signs of its failure can prevent serious damage. One common indicator is unusual engine noises. If you hear excessive ticking or clicking sounds, this might be a sign of timing belt issues. These noises occur due to the belt’s wear affecting the proper movement of the camshaft and crankshaft.
Another important symptom is engine misfires. A worn-out belt can slip and cause the engine to misfire or run roughly. This misalignment leads to incorrect timing of the engine’s valves, impacting the engine’s performance. If you notice irregularities during engine operation or stalling, inspect the timing belt.
Additionally, be on alert for oil leaks. Timing belt covers can develop leaks, allowing oil to seep onto the belt. Oil degradation on the belt can cause it to break altogether. Checking the belt area for oil traces and addressing leaks promptly can mitigate this risk.
Irregular Engine Performance Indicators
Difficulties in starting your engine can also highlight timing belt problems. A belt in poor condition may not properly engage the camshaft or crankshaft, leading to hard starts or complete failure to start. Repeated issues with starting indicate it’s time for an inspection.
Poor engine performance, such as lower power and acceleration, also signals a failing timing belt. As the timing belt wears, the synchronisation between the engine’s components deteriorates, affecting the combustion process and overall performance.
Importance of Early Detection and Prevention
Detecting timing belt issues early is crucial. The catastrophic consequences of ignoring these signs include severe engine damage, notably in interference engines where piston and valve collisions can occur. Regular inspections and preventive maintenance extend the belt’s life and ensure reliable engine performance.
Being vigilant and responding to these warning signs can save substantial repair costs and keep your engine running smoothly. Regular monitoring and early action protect against unexpected breakdowns and expensive fixes.
Timing Belt Maintenance and Replacement
A timing belt is indispensable to proper engine functioning, aligning the crankshaft and camshaft to manage valve and piston movements. Regular maintenance and timely replacements are essential to avoid catastrophic engine failures.
Typical Lifespan
Timing belts generally have a recommended lifespan of 60,000 to 100,000 miles, as outlined by major manufacturers such as Gates Corporation. The actual lifespan may vary depending on driving conditions, maintenance practices, and the specific engine design. Following the manufacturer’s guidance is crucial to ensure the timing belt’s optimal performance and longevity.
Factors Affecting Timing Belt Wear
Various external and internal factors can impact the lifespan of a timing belt:
- Heat: High ambient temperatures and engine heat can deteriorate the rubber components of the belt, leading to cracks and weakening of the material.
- Moisture: Exposure to moisture can result in rust forming on the pulleys and tensioners, which in turn can damage the belt.
- Contaminants: Oil leaks and dirt accumulation can degrade the timing belt materials and compromise their function.
- Belt Tension: Incorrect tension can cause excessive wear over time, either by making the belt too tight and overstressed or too loose and misaligned.
Understanding these wear factors can help in better predicting the timing belt’s replacement needs and in extending its service life.
Importance of Regular Inspections and Preventive Maintenance
Regular inspection of the timing belt is critical to detecting early signs of wear and damage. Visual inspections should be conducted during routine maintenance, looking for:
- Cracks and fraying
- Glazing or shiny spots indicating slippage
- Loss of tension
Besides inspections, other components linked to the timing system, such as tensioners, pulleys, and the water pump, should also be reviewed and replaced if necessary. Replacing these components simultaneously with the timing belt can save on future labour costs and ensure a more reliable timing system.
Preventive maintenance helps in avoiding unexpected belt failures, which can lead to extensive engine damage and costly repairs. Staying ahead of recommended replacement intervals and being mindful of the wear factors can significantly reduce the risk of sudden malfunctions.
Understanding the maintenance and replacement principles of the timing belt is crucial for any vehicle owner, paving the way for optimal engine performance and longevity.
Consequences of Timing Belt Failure
Understanding the potential consequences of timing belt failure is essential for maintaining the health of your vehicle’s engine. This component, while small in size, plays a critical role in engine functionality, and its failure can lead to significant damage, particularly in interference engines.
Potential Engine Damage in Interference Engines
Interference engines are designed with limited clearance between the valves and pistons. One of the inherent risks of this design is that, if the timing belt breaks, the valves and pistons can collide. This collision typically leads to bent valves, damaged pistons, and sometimes cracked cylinder heads. The intensity of the damage often means extensive repairs or complete engine replacement is necessary, which is costly and labour-intensive.
Interference engines are favoured due to their compact size and improved performance. However, the compactness increases the likelihood of valve-to-piston interaction in the event of a timing belt failure. This explains why regular timing belt maintenance is paramount in these engines.
Impact on Valves and Pistons
The timing belt ensures that the engine’s valves open and close at precise intervals to synchronise with the pistons’ movement. If this synchronisation is lost due to a belt failure, it disrupts the engine’s operation. Valves may remain open while the piston moves upward, increasing the chance of a collision. Apart from bent valves, such an impact can lead to broken pistons and potentially cause the entire engine to seize, which is a catastrophic event requiring major repair work or total engine replacement.
Cost Implications of Timing Belt Failure
The cost incurred from timing belt failure is significantly higher than the cost of preventive maintenance. Replacements of damaged components such as valves and pistons, along with potential repairs to the cylinder head, quickly add up. Comparatively, replacing a timing belt is a fraction of these repair costs, making its proactive maintenance a cost-effective strategy. Hence, routine checks and replacements every 60,000 to 100,000 miles are recommended to avoid these unnecessary expenses.
By understanding the severe consequences of timing belt failure, vehicle owners can better appreciate the necessity of regular maintenance. Ensuring the timing belt is in good condition not only prevents potential engine damage but also preserves the overall reliability of the vehicle.
Cost and Professional Replacement
When considering the cost of timing belt replacement, it is essential to view it as both a necessary maintenance expense and a preventive measure against potential catastrophic engine failure. The overall cost for replacing a timing belt typically ranges from £400 to £1,000, though this can vary based on the make and model of the vehicle, with sophisticated or imported cars often falling on the higher end of the scale.
Breakdown of Costs
The cost of a timing belt replacement is split between parts and labour. The belt itself isn’t particularly expensive, usually costing anywhere from £100 to £350. However, many mechanics recommend replacing related components such as the tensioners, idler pulleys, and the water pump simultaneously to ensure optimal engine performance and prevent imminent failures of these parts. A complete timing belt kit, which includes these components, is typically included in the parts cost estimation.
Labour constitutes a significant portion of the total cost, with the process generally taking between 3 to 5 hours due to the meticulous work required to access and replace the belt within the engine block. Labour fees vary, but they often range between £300 and £650, depending on the vehicle’s complexity and the hourly rate charged by the mechanic.
Importance of Professional Replacement
Given the intricate nature of timing belt replacement, involving precise synchronisation of engine components, it is critical to utilise the services of a qualified mechanic. A poorly installed belt can lead to severe engine issues, including misalignment of the crankshaft and camshaft, which can result in significant engine damage.
DIY versus Professional Services
While some car owners may consider replacing the timing belt themselves to save on costs, it’s important to be aware that even a small mistake can be extraordinarily costly. The process requires specific tools to maintain camshaft alignment and, in certain engine layouts, sophisticated techniques to remove and replace the belt correctly. Therefore, unless you have substantial mechanical knowledge and the right tools, professional replacement is generally the safest approach.
Preventive Cost Efficiency
Proactive replacement of the timing belt within the recommended mileage—typically between 60,000 to 100,000 miles—is far more economical than the potential consequences of a belt failure. Should the belt break, especially in an interference engine, repair costs can skyrocket to £3,000 or more due to extensive valve, piston, and cylinder head damage. Regular replacement and maintenance are not only about ensuring continual smooth vehicle operation but also about safeguarding against these high repair costs.
