Case Study: Resolving the Heating Issue in a Jaguar I-PACE
At Stedmans Garage, we pride ourselves on our expertise in electric vehicles, particularly in servicing and repairing Jaguar models. Recently, we had the opportunity to assist a customer with a heating issue in their Jaguar I-PACE. The customer reported that no hot air was coming out of the dashboard.
Understanding the Problem
When our customer arrived at Stedmans Garage, they expressed their concern about the lack of warm air circulating within the cabin of their Jaguar I-PACE. The heating system relies on a specific component known as the heating unit, which heats the circulating coolant. This heated coolant is then used to warm the air that flows into the cabin, providing a comfortable environment for passengers.
The Fix: Step-by-Step
To address this issue, our highly skilled technicians undertook a systematic approach:

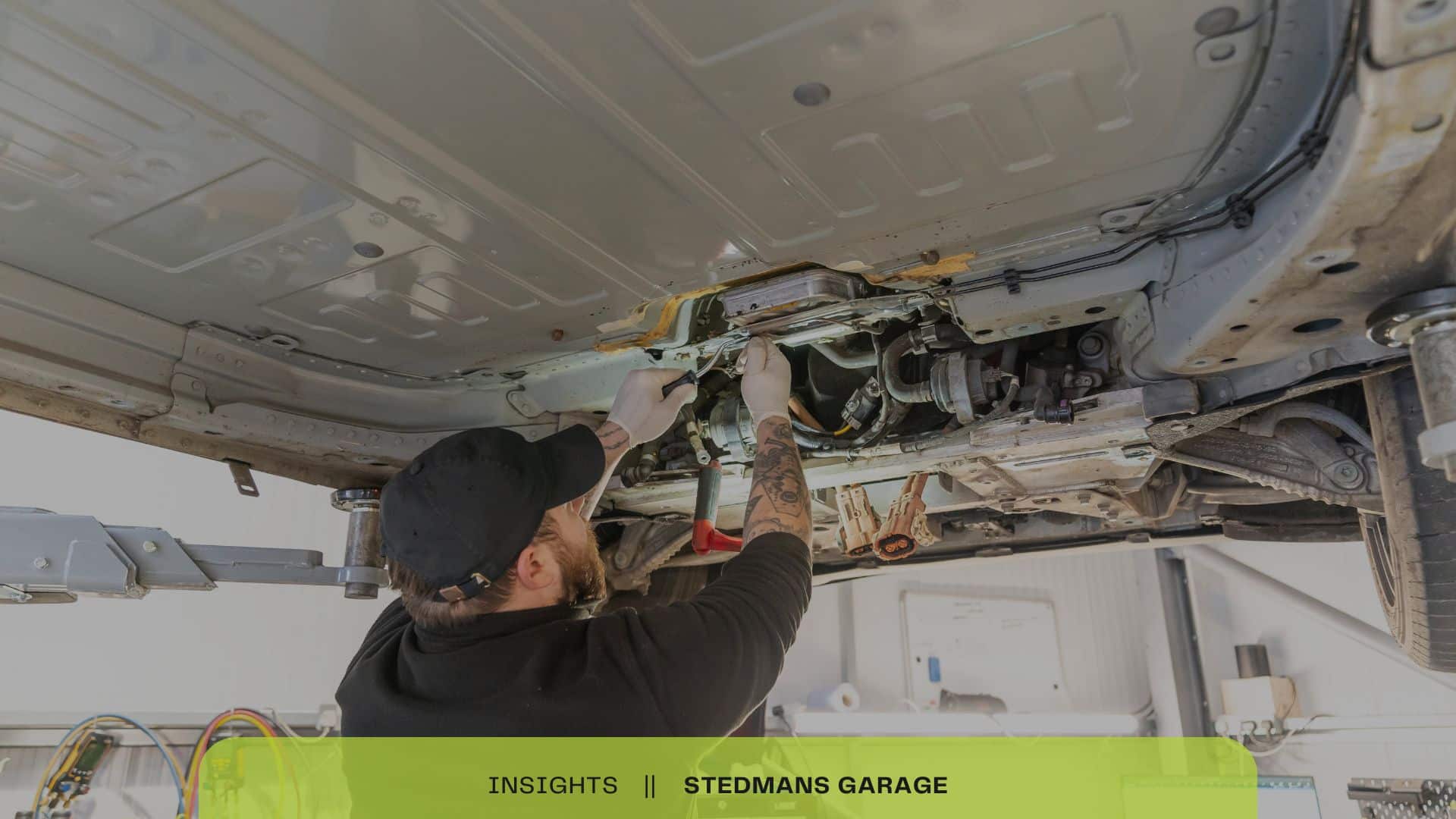

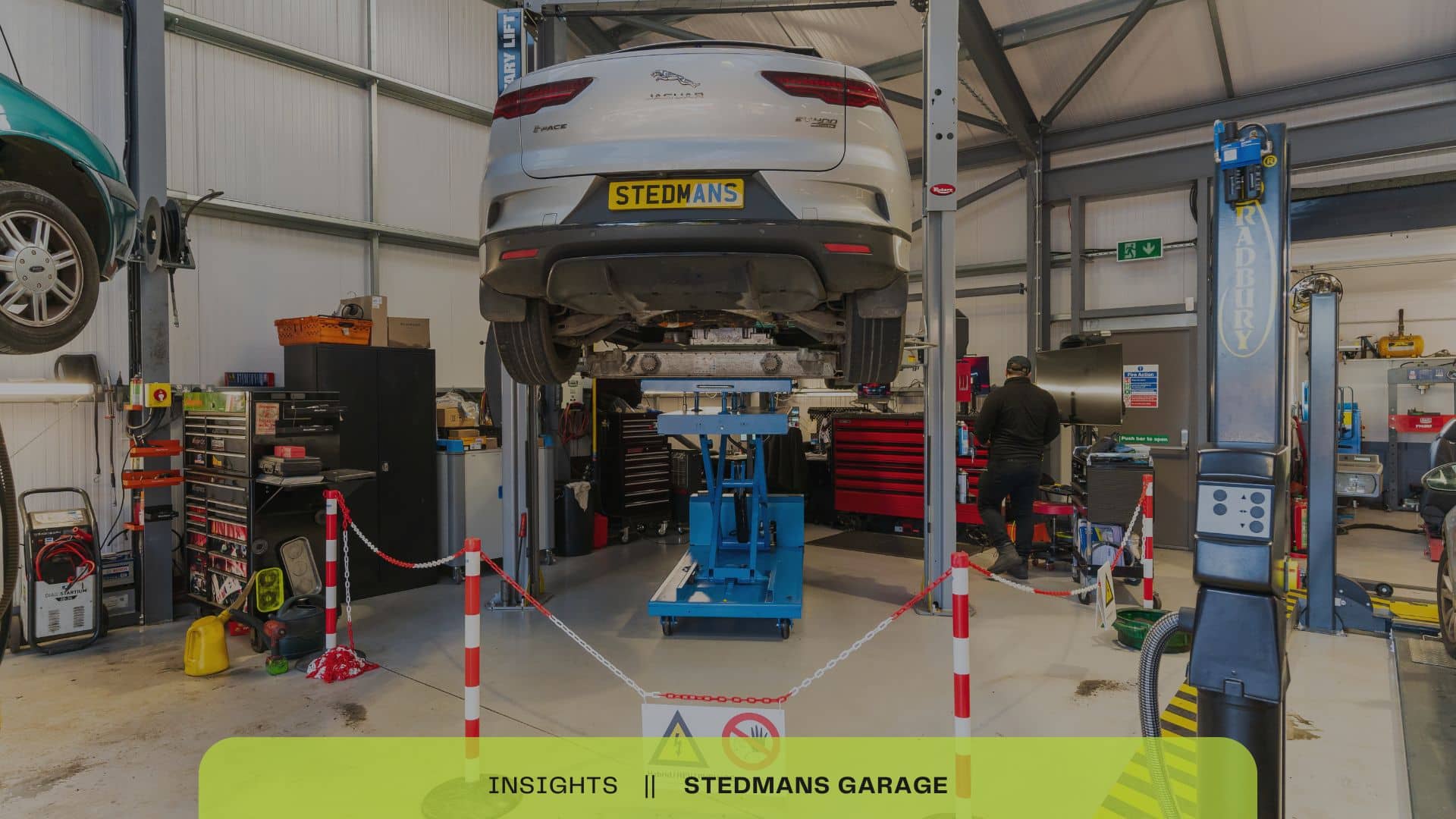

- Lowering the High Voltage Battery: The first step in the repair process involved safely lowering the high voltage battery. This was essential to gain access to the heating unit located above the battery. Handling the high voltage battery requires expertise, and our technicians ensured that all safety protocols were followed meticulously.

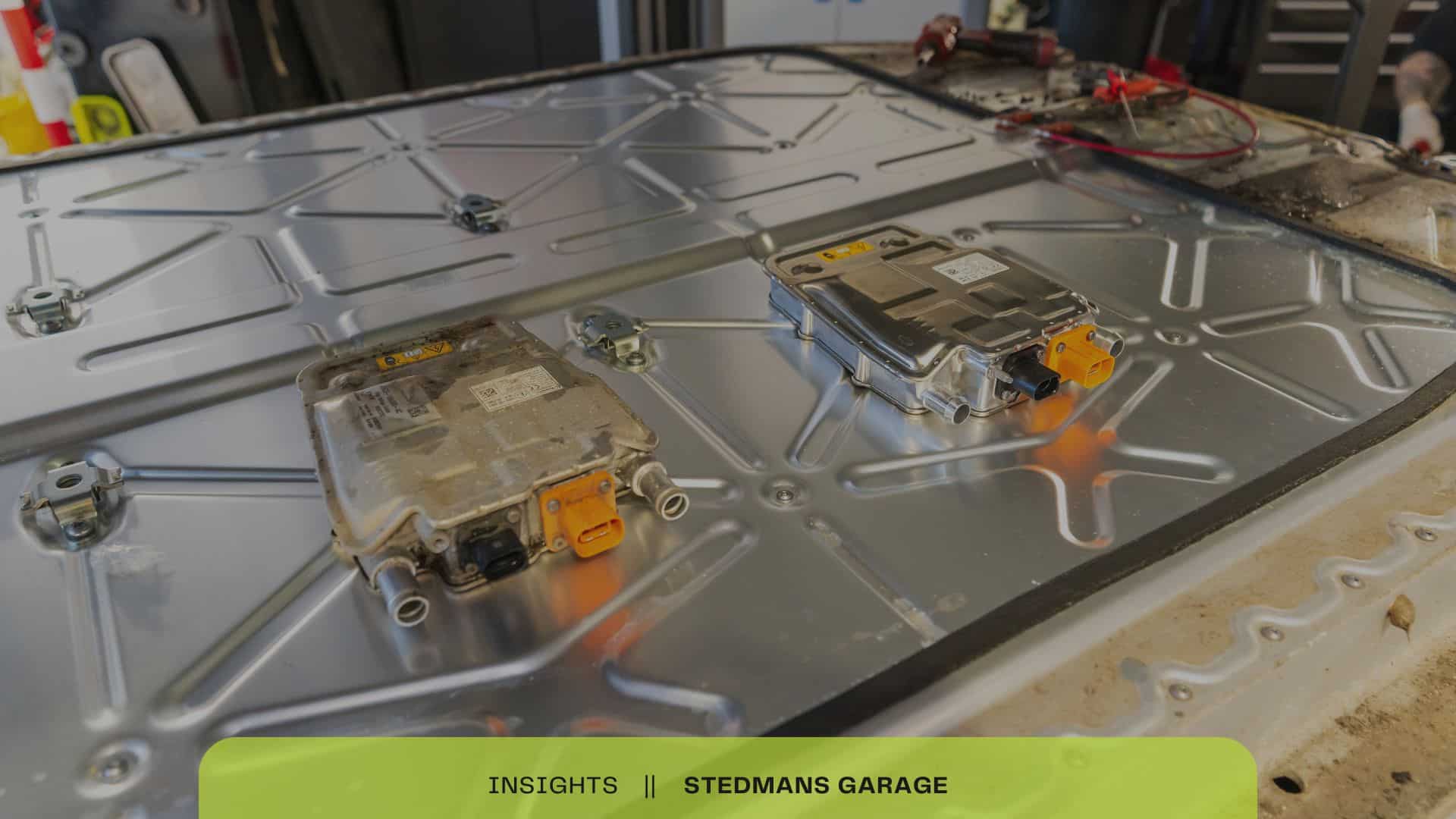

- Accessing and Replacing the heating unit: Once the battery was lowered, our team accessed the heating unit. This component is crucial for heating the circulating coolant that warms the cabin air. Upon inspection, we determined that the heating unit needed to be replaced due to its failure to heat the coolant effectively.
- Installing the New Heating Unit: With the faulty heating unit removed, our technicians proceeded to install a new heating unit into the vehicle. This new component was carefully fitted to ensure it operated efficiently and effectively in heating the cabin.
- Re-fitting the Battery: After the installation of the new heating unit, we carefully re-fitted the high voltage battery back into its original position. This step required precision to ensure that all connections were secure and that the battery was properly aligned.
- Completing Software Updates for the PCM: The final step in our repair process involved performing necessary software updates for the Powertrain Control Module (PCM). Keeping the vehicle’s software up to date is essential for optimal performance and functionality, particularly in electric vehicles like the Jaguar I-PACE.
Understanding the I-PACE Heating System
The Jaguar I-PACE is celebrated for its advanced heating system, which is crucial for maintaining comfort in various weather conditions. This section explores the heat pump technology, the importance of preconditioning, and the basic principles behind the I-PACE’s EV heating system.
Heat Pump Technology as a Standard Feature in I-PACE Models
A standout feature of the Jaguar I-PACE is its standard heat pump technology. Unlike traditional heating systems that rely solely on battery power, heat pumps use ambient air to warm the car’s interior. This approach not only enhances energy efficiency but also extends the vehicle’s range.
A heat pump operates like a refrigerator in reverse: it compresses air to generate heat, which is then used to warm both the cabin and battery. This energy redirection contributes to a reported increase in range during colder weather by up to 30 miles (50 km).
Role of Preconditioning in Cabin Heating
Preconditioning is another vital aspect of the I-PACE heating system, designed to optimise both efficiency and comfort. Using the Jaguar InControl app, owners can set their preferred cabin temperature before entering the vehicle. This allows the car to be heated or cooled while still plugged into an external power source.
This feature not only preserves battery range but also ensures that both the cabin and battery are at the ideal temperatures for your journey. In colder conditions, preconditioning can greatly reduce the energy needed to warm the cabin, thus extending the vehicle’s driving range.
Basic Operation Principles of the EV Heating System
The Jaguar I-PACE heating system primarily uses a heat pump for heating the interior, which is more efficient than traditional resistive heating.
- Heat Generation: The system primarily relies on the heat pump, which transfers external air into the cabin by compressing it, generating heat.
- Supplemental Heating: In extremely cold conditions, when the heat pump may struggle, the system engages resistive heating, using electric currents to generate heat directly.
- Energy Management: The intelligent control system optimises energy distribution. It prioritises the heat pump but switches to resistive heating when necessary to maintain comfort.
Together, these technologies ensure that the I-PACE heating system is both efficient and effective, making it a winter-friendly electric car.
Common Heating Issues
High-Voltage Heater Failures
A common issue faced by Jaguar I-PACE owners is the failure of the high-voltage heater. This component is essential for both cabin heating and battery temperature regulation. Many owners have reported instances of their heaters failing, leaving them without adequate heating in colder climates. For example, one customer shared their experience in an online forum, stating that diagnostic tests confirmed a high-voltage heater failure, a recurring problem for them. The resolution often involves lengthy repairs, including the removal of the high-voltage battery to access and replace the faulty heater.
Inadequate Cabin Heating in Cold Weather
Electric vehicles like the I-PACE can struggle with heating efficiency in colder weather. Traditional internal combustion engine vehicles produce excess heat that can be used to warm the cabin, but electric vehicles rely on their electric heating systems, which draw directly from the battery. Owners have reported slow or inadequate heating during winter months, which affects comfort and can also reduce battery range as the system works harder to maintain temperatures.
Power Electronics Faults
Another significant heating issue in the Jaguar I-PACE involves faults within the power electronics. These faults can negatively impact the overall heating performance of the vehicle. For instance, problems in the power electronic units can lead to inconsistent heating, where the cabin fails to reach or maintain the desired temperature. Owners have noted symptoms such as the cabin blower emitting only cold air despite the heater being engaged, indicating possible electronic component failures.
These heating issues can often be traced back to various underlying technical problems, from faulty high-voltage coolant heaters to wiring harness issues and membrane faults behind the climate controls. Addressing these concerns typically requires professional diagnostics and sometimes extensive repair work, making it vital for owners to stay proactive about their vehicle’s maintenance and effectively utilise their warranty and dealership services.
Known Technical Problems
The Jaguar I-PACE does not come without its share of technical troubles, particularly concerning its heating system. Owners of these advanced electric vehicles have reported several issues that can make winter drives uncomfortable. Here, we explore some of the more persistent problems that I-PACE owners may encounter.
Faulty Membrane Behind Climate Controls
A common issue involves the climate control interface. Some drivers have experienced intermittent blackouts of the climate control touch screen and malfunctioning temperature knobs. This can often be traced back to a defective membrane behind the climate controls. When this membrane fails, it leads to unreliable climate control operations, causing the screen and knobs to be unresponsive or erratic. Consequently, users may struggle to achieve the desired cabin temperatures, resulting in a frustrating driving experience.
High-Voltage Coolant Heater Malfunctions
An additional significant issue lies with the high-voltage coolant heaters (HVCH). These heaters are essential for warming the cabin and defrosting the windshield. However, malfunctions in the HVCH have been frequently reported among I-PACE owners. When the HVCH fails, coolant cannot be heated, which directly affects the car’s ability to defrost the windshield, posing a potential hazard that can impair visibility and increase the risk of accidents.
Moreover, these heaters are responsible for preheating the battery in cold weather, so any failure can impact battery performance, reducing the vehicle’s range and overall efficiency.
Wiring Harness Issues Affecting the Heating System
Wiring harness problems have also plagued the I-PACE’s heating system. These issues often arise from water ingress, which can damage the harness and other related components. Damaged wiring can lead to intermittent or total failure of the heating system. A significant sign of wiring harness issues is when the climate control suddenly becomes unresponsive or operates inconsistently. Owners have noted that fixing this problem often requires major dismantling of vehicle components, making it not only inconvenient but also time-consuming.
Conclusion
In conclusion, understanding the heating system of your Jaguar I-PACE is vital for ensuring comfort and safety during winter drives. By staying informed about common issues, utilising warranty services, and adhering to preventive maintenance practices, you can enjoy a seamless driving experience in any weather condition.
At Stedmans Garage, we are committed to providing high-quality service to our customers. The successful resolution of the heating issue in this Jaguar I-PACE not only restored comfort to the vehicle but also reinforced our reputation as experts in electric vehicle maintenance and repair.
If you’re experiencing heating issues or any other concerns with your Jaguar I-PACE, look no further than Stedmans Garage. Our skilled technicians utilise state-of-the-art equipment and the latest techniques to ensure your Jaguar I-PACE remains in peak condition. Trust Stedmans Garage to resolve any heating issues efficiently and effectively. Contact us today or book online for expert service that keeps your electric vehicle running smoothly.
